Metal Framed Skylights

Features & Benefits

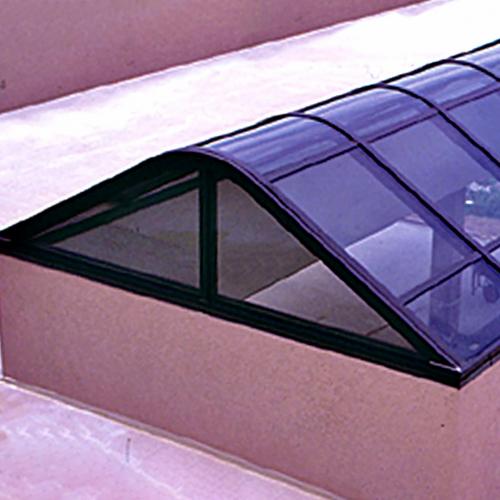

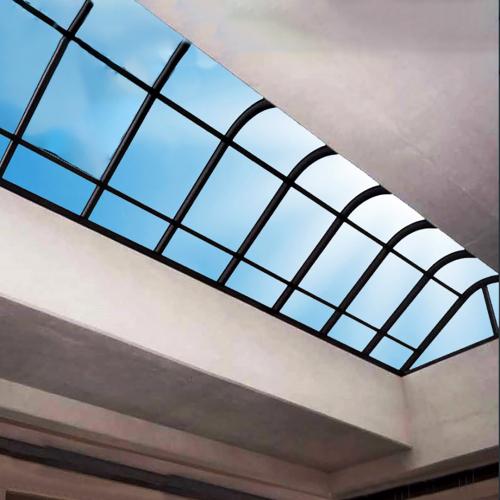

Galaxy Barrel Ridge skylights for an open view of the sky above.   Exclusive to Crystal Structures, our barrel ridge design is a unique metal-framed skylight that uses a piece of curved tempered and laminated glass at the ridge to provide a beautiful focal point. Your eyes are naturally drawn to the highest point of the skylight and with our barrel ridge design, the view is OPEN which provides a full focus on the sky. No metal framework at the apex.

• Obtain spans well into the 30’ range.
• Can be designed with or without glazed end walls.
• All aluminum frame, no rust!
• Thermally enhanced frames reduce heat/cold transfer
• Stainless steel fasteners, no rust
•  4 weepage channels in every rafter, drains condensation
• Seamless snap-in pressure plate covers, no unsightly bolts that create dirt trails
• Built-in shade tracks designed for the Comfort Glide shade system
• Built-in accessory track allows for easy hanging of lightweight articles without drilling holes in the frame
• 10-year frame finish and glass warranty

Options:

Standard Frame finishes  include:

• White or bronze paint (AAMA 2605 on exterior members)
• Clear or bronze anodized (class I)
• Optional frame finishes – Custom paint and several anodized colors

Glazing recommendations –
See our regional glass chart and polycarbonate selections

Call 1-800-222-1598 for design assistance or complete the form on the right.
